VEVOR Metal Lathe, 8.3 x 31.5 inch Mini Lathe Machine, 2500 RPM Variable Speed Change, 850W Precision Mini Lathe
Highlights:
1.Sturdy & Durable Construction: The mini lathe is made of high-quality HT200 cast iron, which stands up to tear and wear. It is equipped with an 750W motor that delivers a great deal of energy. If you are into making models, it would be your punctilious assistant.
2.Infinitely Variable Speeds: Revolving Speed Range: 50-2500. The mini lathe machine comes with variable speeds that give you the convenience to achieve the best work. This lathe allows you to work on both forward or reverse of any possible speed. The feeding rate can be adjusted manually or automatically. And an emergency button is accessible just in case.
3.Works with Precision: Spindle Bore: 1.5"/38 mm. The metal working lathe is pre-installed with a 3-jaw chuck, 4.9"/125 mm in diameter, that can clamp raw materials tight, and a backsplash guard that prevents metal filings.
4.Stable & Reliable Operation: Swing Over Bed: 8"/210 mm; Swing Over Cross Slide: 32"/800 mm. The small metal lathe features a turret post for quick tool change and a center rest for tight pieces holding, making internal cutting, face cutting, and bevel cutting possible.
5.Adjustable Tailstock: Taper in Tailstock Spindle: MT3. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
Details:
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
1.Sturdy & Durable Construction: The mini lathe is made of high-quality HT200 cast iron, which stands up to tear and wear. It is equipped with an 750W motor that delivers a great deal of energy. If you are into making models, it would be your punctilious assistant.
2.Infinitely Variable Speeds: Revolving Speed Range: 50-2500. The mini lathe machine comes with variable speeds that give you the convenience to achieve the best work. This lathe allows you to work on both forward or reverse of any possible speed. The feeding rate can be adjusted manually or automatically. And an emergency button is accessible just in case.
3.Works with Precision: Spindle Bore: 1.5"/38 mm. The metal working lathe is pre-installed with a 3-jaw chuck, 4.9"/125 mm in diameter, that can clamp raw materials tight, and a backsplash guard that prevents metal filings.
4.Stable & Reliable Operation: Swing Over Bed: 8"/210 mm; Swing Over Cross Slide: 32"/800 mm. The small metal lathe features a turret post for quick tool change and a center rest for tight pieces holding, making internal cutting, face cutting, and bevel cutting possible.
5.Adjustable Tailstock: Taper in Tailstock Spindle: MT3. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
Details:

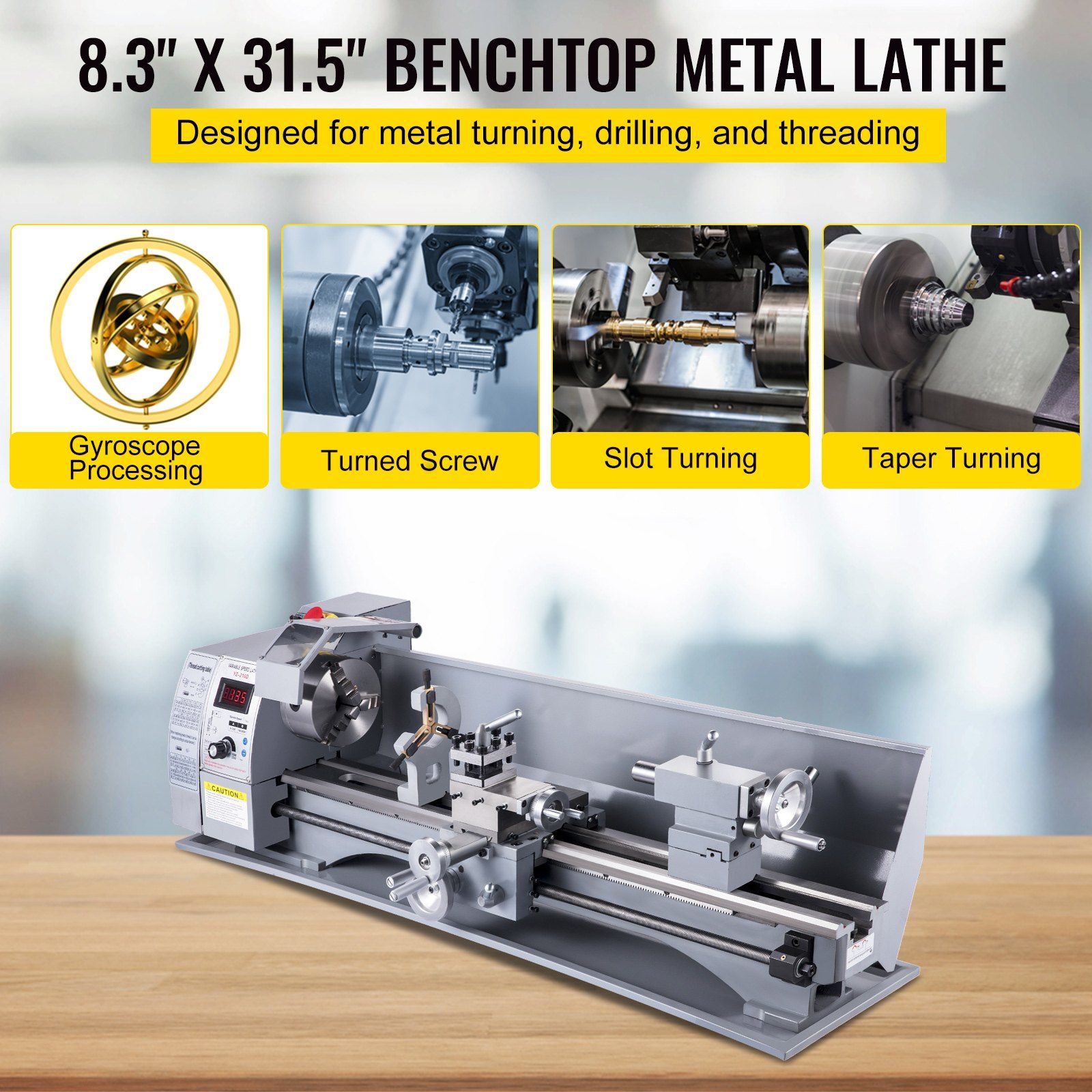

8" x 32" Extended Metal Lathe
The mini lathe is custom for you into making models, a DIY machinist, or a gun hobbyist. You can use it to create threaded parts as well as small components made with precision. The small but powerful 210 x 800 mm lathe of a thread range of 8-44 T.P.I will be the exact machine to fill in the vacancy in your garage.
- Sturdy & Durable Construction
- Variable Speed Control
- Works with Precision
- Stable & Reliable Operation
- Adjustable Tailstock
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

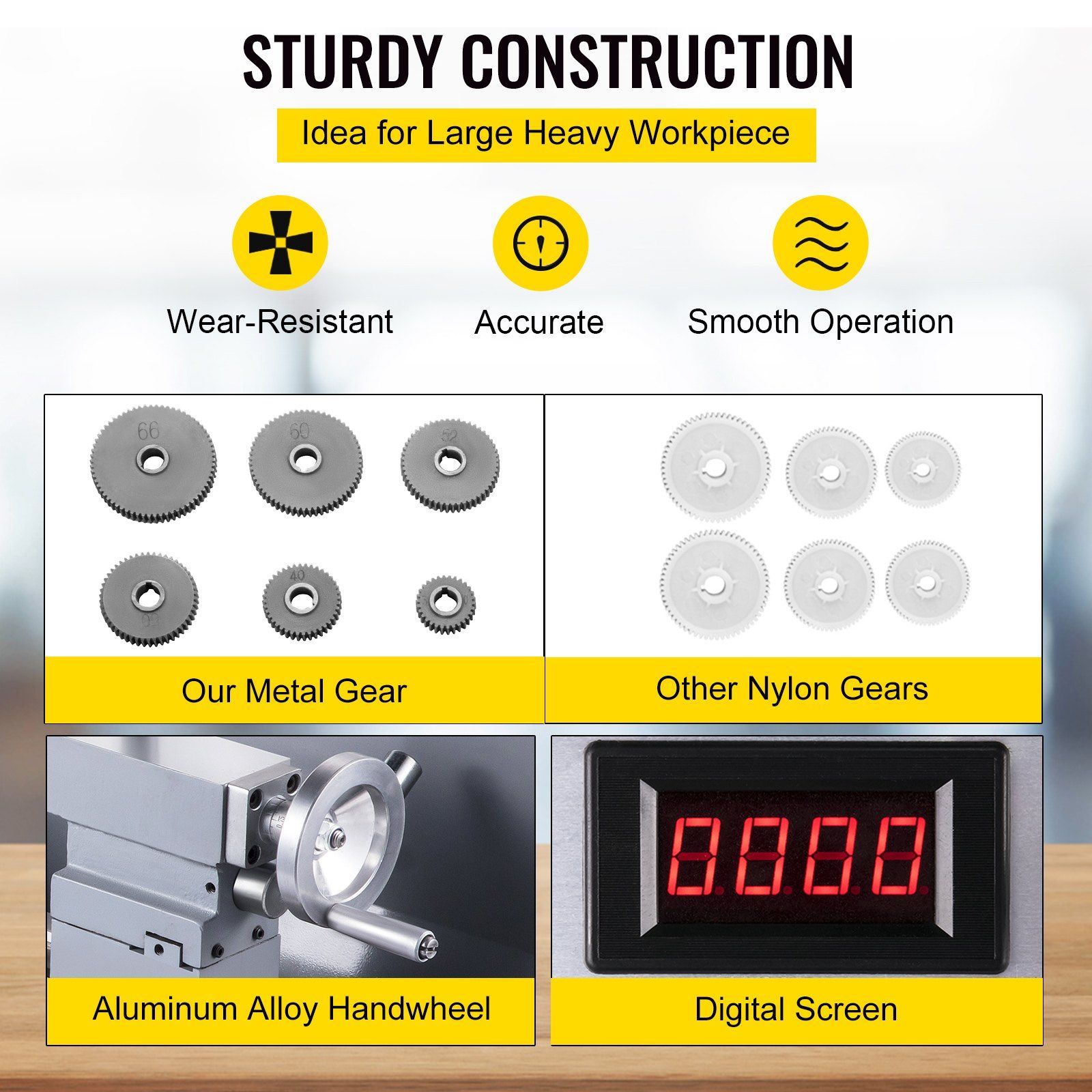

Heavy-Duty Metal Lathe
The milling machine is made of rigid cast iron, a tough material that features a long service life. It is designed with buttons and knobs for easy usage.
Variable Speeds
The metal lathe comes with variable speeds of 50-2500. Easily change the speed by turning the switch. Meanwhile, the indicator beyond notifies you of the ongoing operations.
3-Jaw Chuck
The mini lathe bears a 3-jaw chuck and a 38 mm spindle bore. The chuck uses a P3 bearing widely used where precise machining is required and reaches high rotary speeds.
4-Way Tool Post
The 4-way turret post on the lathe is easy to adjust. And it is convenient to change the cutting tools. With the post, you can do bevel cuttings.
Stable Operation
The lathe machine has a center rest and a tailstock that supports the longitudinal rotary axis of a workpiece that you are going to process.
Wide Application
The metal lathe machine works without taking up a lot of room in your shop or garage, making bushings, spindles, prototypes, models, and more.
Specifications
- Model: WM210V
- Material: HT200 Cast Iron
- Power of Motor: 750W 110V
- Spindle Speed: 50-2500 RPM
- Swing Over Bed: 8.3" / 210 mm
- Swing Over Cross Slide: 31.5" / 800 mm
- Chuck Diameter: 4.9" / 125 mm
- Spindle Bore: 1.5" / 38 mm
- Spindle Taper: MT5
- Tailstock Taper: MT2
- Item Weight: 166.4 lbs / 75.5 kg
- Item Dimensions: 40.5 × 15 × 16 in / 103 × 38 × 41 cm

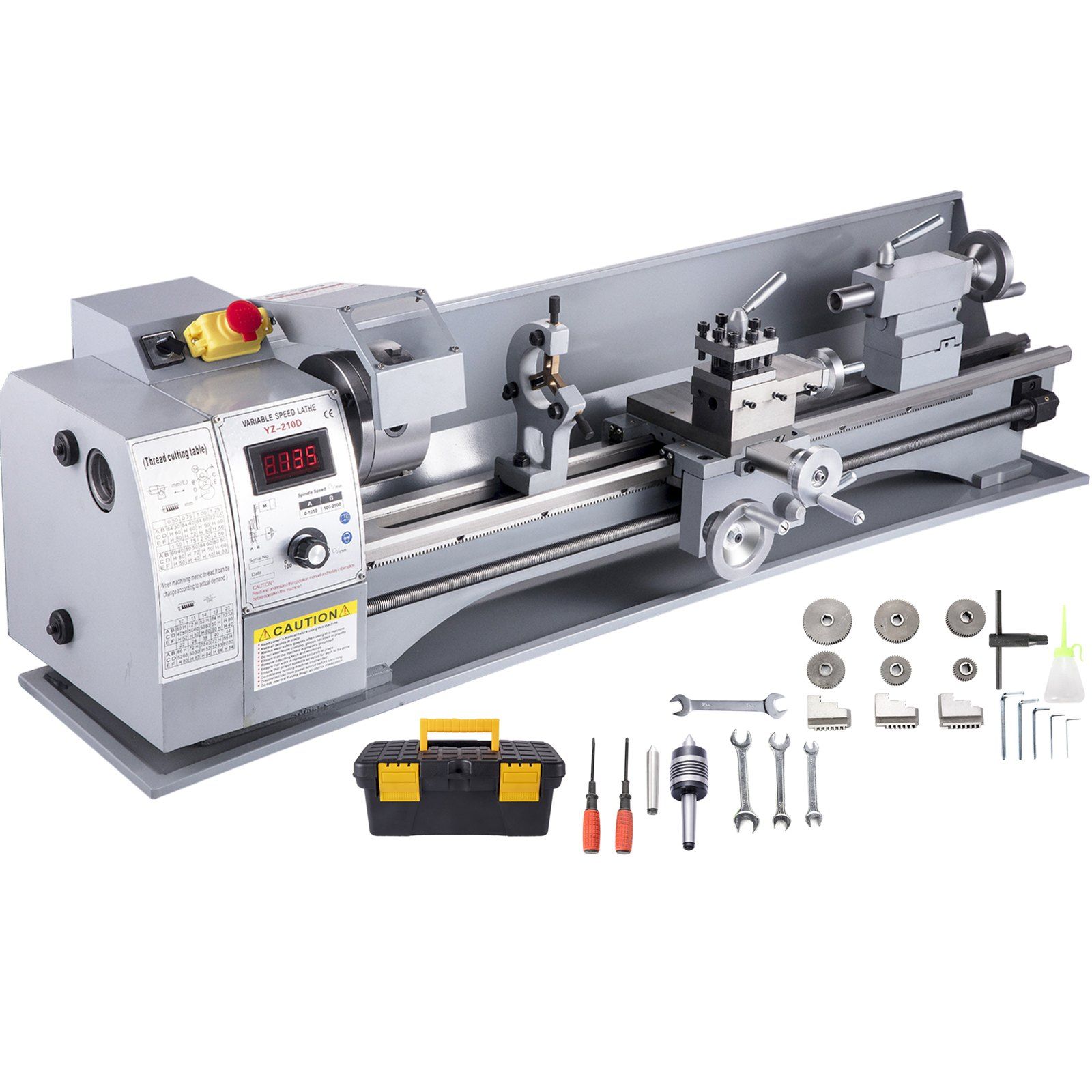

Package Content
- 1 x Mini Metal Lathe
- 1 x Center Rest
- 6 x Metal Gears
- 3 x Jaws
- 1 x Oil Gun
- 5 x Allen Keys
- 4 x Wrenches
- 1 x Tool Kit
- 1 x Accessory Set
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
8" x 32" Extended Metal Lathe
The mini lathe is custom for you into making models, a DIY machinist, or a gun hobbyist. You can use it to create threaded parts as well as small components made with precision. The small but powerful 210 x 800 mm lathe of a thread range of 8-44 T.P.I will be the exact machine to fill in the vacancy in your garage.
- Sturdy & Durable Construction
- Variable Speed Control
- Works with Precision
- Stable & Reliable Operation
- Adjustable Tailstock
Heavy-Duty Metal Lathe
The milling machine is made of rigid cast iron, a tough material that features a long service life. It is designed with buttons and knobs for easy usage.
Variable Speeds
The metal lathe comes with variable speeds of 50-2500. Easily change the speed by turning the switch. Meanwhile, the indicator beyond notifies you of the ongoing operations.
3-Jaw Chuck
The mini lathe bears a 3-jaw chuck and a 38 mm spindle bore. The chuck uses a P3 bearing widely used where precise machining is required and reaches high rotary speeds.
4-Way Tool Post
The 4-way turret post on the lathe is easy to adjust. And it is convenient to change the cutting tools. With the post, you can do bevel cuttings.
Stable Operation
The lathe machine has a center rest and a tailstock that supports the longitudinal rotary axis of a workpiece that you are going to process.
Wide Application
The metal lathe machine works without taking up a lot of room in your shop or garage, making bushings, spindles, prototypes, models, and more.
