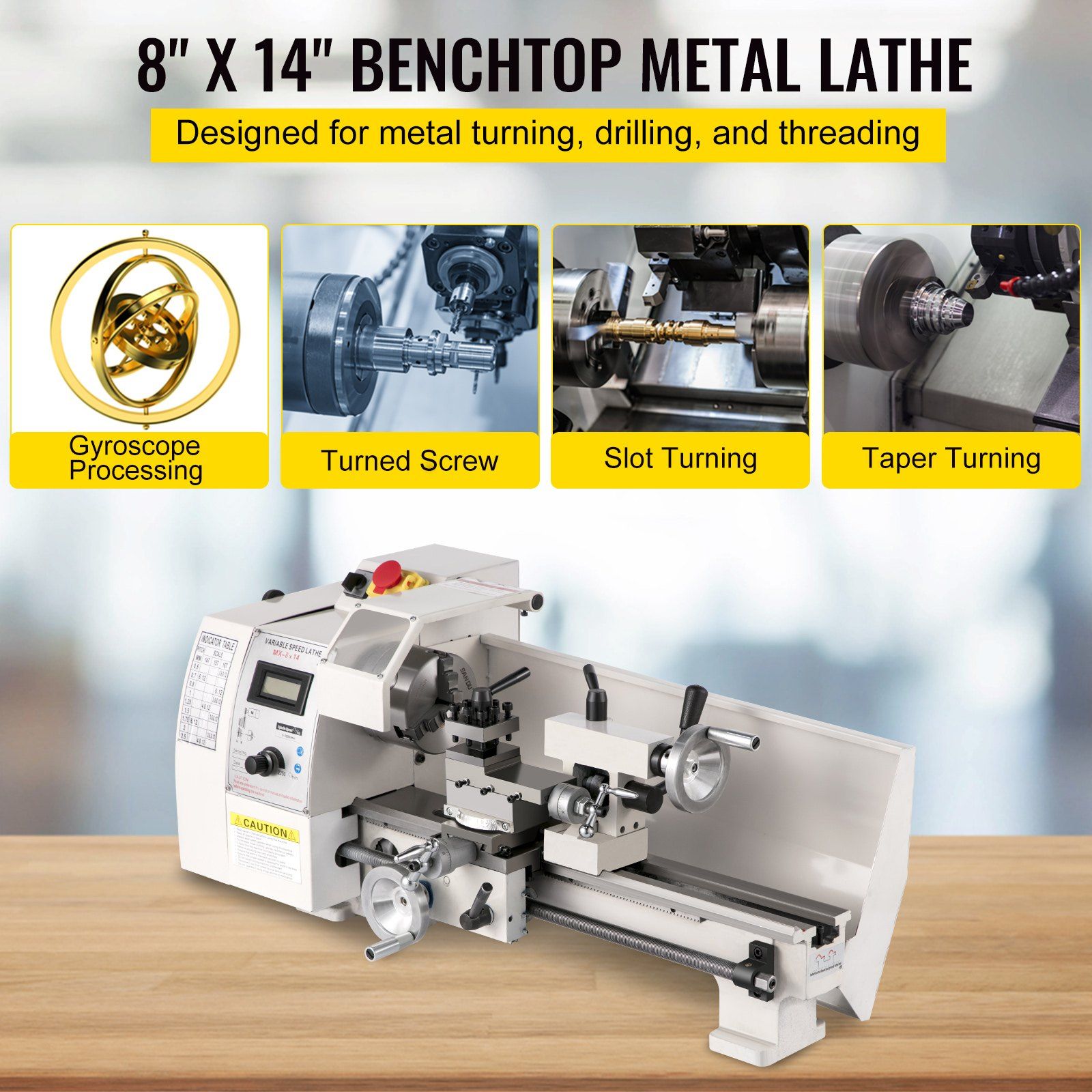

VEVOR Mini Metal Lathe, 8"x14", Mini Lathe Machine 2250 PRM Variable Speed Change, Precision Mini Lathe 650W Metal Working Lathe, Small Metal Lathe
Highlights:
1.Sturdy & Durable Construction: The mini lathe is made of high-quality cast iron which stands up to tear and wear. It is equipped with a 600W motor that delivers a great deal of energy. If you are into making models, it would be your professional assistant who has precise metric graduations and metal gears and therefore is punctilious.
2.Infinitely Variable Speeds: Revolving Speed Range: 50-2250±10% RPM. The mini lathe machine comes with variable speeds that give you the convenience to achieve the best work. This lathe allows you to work on both forward or reverse of any possible speed. The feeding rate can be adjusted manually or automatically. And an emergency button is accessible just in case.
3.Works with Precision: Spindle Bore: 0.8"/21 mm. The metal working lathe is pre-installed with a 3-jaw chuck, 3.9"/100 mm in diameter, which clamps raw materials tight, and a backsplash guard that ensures your security during operation.
4.Faster & More Effective: Swing Over Bed: 8.3"/210 mm. Swing Over Cross Slide: 13.8"/350 mm. The small metal lathe features a turret post for quick tool change and a cross slide for free blade moving, making internal cutting, face cutting and bevel cutting possible.
5.Adjustable Tailstock: Taper in Tailstock Spindle: MT3. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
Details:
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
1.Sturdy & Durable Construction: The mini lathe is made of high-quality cast iron which stands up to tear and wear. It is equipped with a 600W motor that delivers a great deal of energy. If you are into making models, it would be your professional assistant who has precise metric graduations and metal gears and therefore is punctilious.
2.Infinitely Variable Speeds: Revolving Speed Range: 50-2250±10% RPM. The mini lathe machine comes with variable speeds that give you the convenience to achieve the best work. This lathe allows you to work on both forward or reverse of any possible speed. The feeding rate can be adjusted manually or automatically. And an emergency button is accessible just in case.
3.Works with Precision: Spindle Bore: 0.8"/21 mm. The metal working lathe is pre-installed with a 3-jaw chuck, 3.9"/100 mm in diameter, which clamps raw materials tight, and a backsplash guard that ensures your security during operation.
4.Faster & More Effective: Swing Over Bed: 8.3"/210 mm. Swing Over Cross Slide: 13.8"/350 mm. The small metal lathe features a turret post for quick tool change and a cross slide for free blade moving, making internal cutting, face cutting and bevel cutting possible.
5.Adjustable Tailstock: Taper in Tailstock Spindle: MT3. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
Details:
8X14' Mini Metal Lathe
Cast Iron & MT3 Spindle Taper & Simple Operation
The mini lathe is custom for you who are into making models, a Do-it-yourself (DIY) machinist, or a gun hobbyist. You can use it to create threaded parts as well as small components made with precision. The small but powerful 210*350 mm lathe of a thread range of 10-44 T.P.I will be the exact machine to fill in the vacancy in your garage.
- Sturdy & Durable Construction
- Infinitely Variable Speeds
- Works with Precision
- Faster & More Effective
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

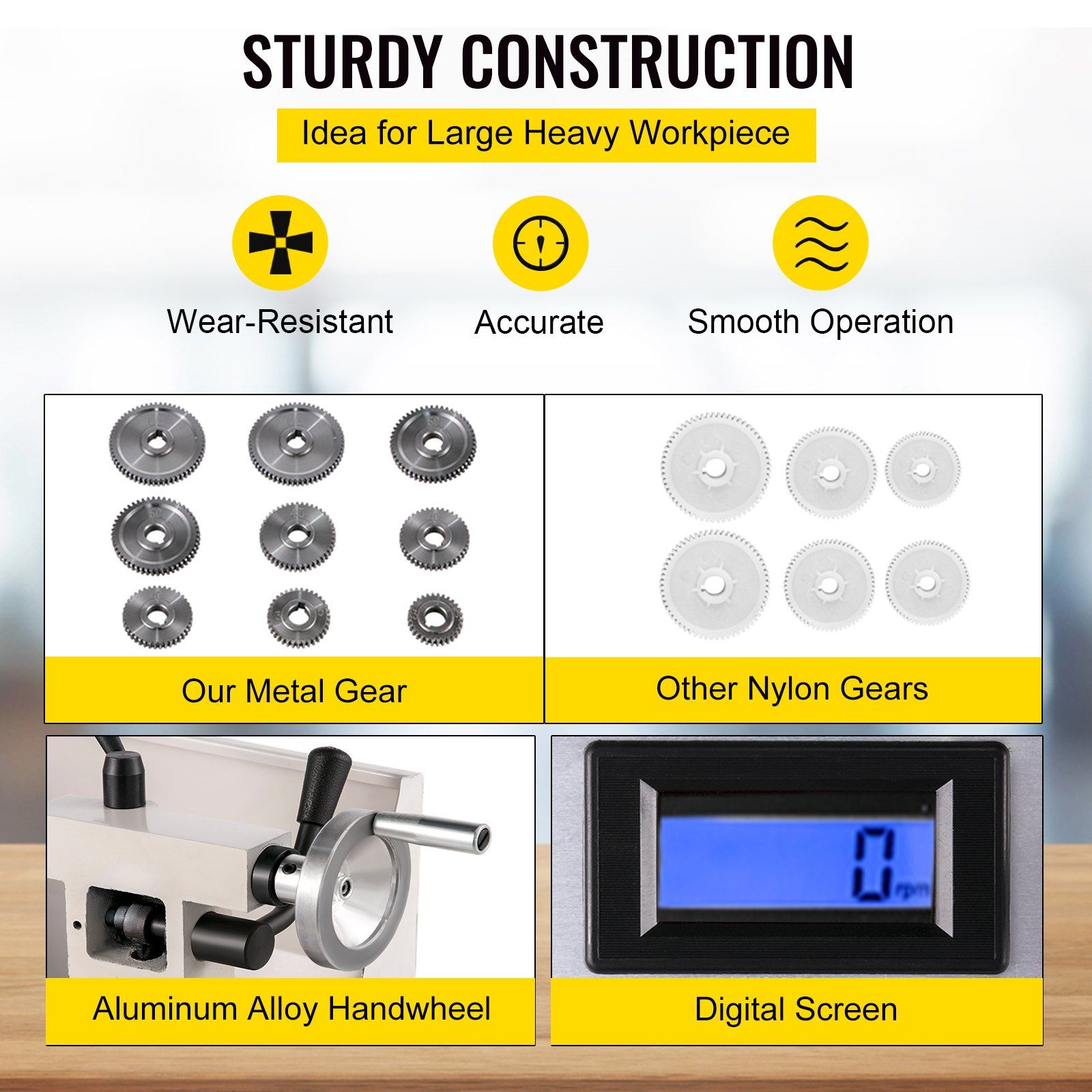

Rigid Cast Iron
The milling machine is made of rugged and wear-resistant cast iron, a tough material that features a long service life.
Variable Speeds
The metal lathe comes with variable speeds of 50-2250±10% RPM. Easily change the speed by turning the switch. Meanwhile, the indicator beyond notifies you of the ongoing operations.
3-Jaw Chuck
The mini lathe bears a 3-jaw chuck and a φ21 mm spindle bore. The chuck applies a P3 bearing which is widely used where precise machining is required and reaches high rotary speeds.
4-Way Turret Post
The 4-way turret post on the lathe is easy to adjust. And it is convenient to change the cutting tools. With the post, you can do bevel cuttings.
MT2 Tailstock
The lathe machine is equipped with a foot stock which gives support to the longitudinal rotary axis of a workpiece that you are gonna process.
Wide Application
The metal lathe machine works without taking up a lot of room in your shop or garage, making bushings, spindles, prototypes, models, and more.
Specifications
- Power of Motor: 600W
- Volt: 110V 60Hz
- Material: Cast Iron
- Spindle Speed: 50-2250 RPM ±10%
- Swing Over Bed: 8.3" / 210 mm
- Swing Over Cross Slide: 13.8" / 350 mm
- Spindle Bore: 0.8" / 21 mm
- Chuck Diameter: 3.9" / 100 mm
- Spindle Taper: MT3
- Tailstock Taper: MT2
- Item Weight: 116.2 lbs / 52.27 kg
- Item Dimensions: 32.6" × 12.2" × 13" / 82.9 × 31.2 × 33.2 cm

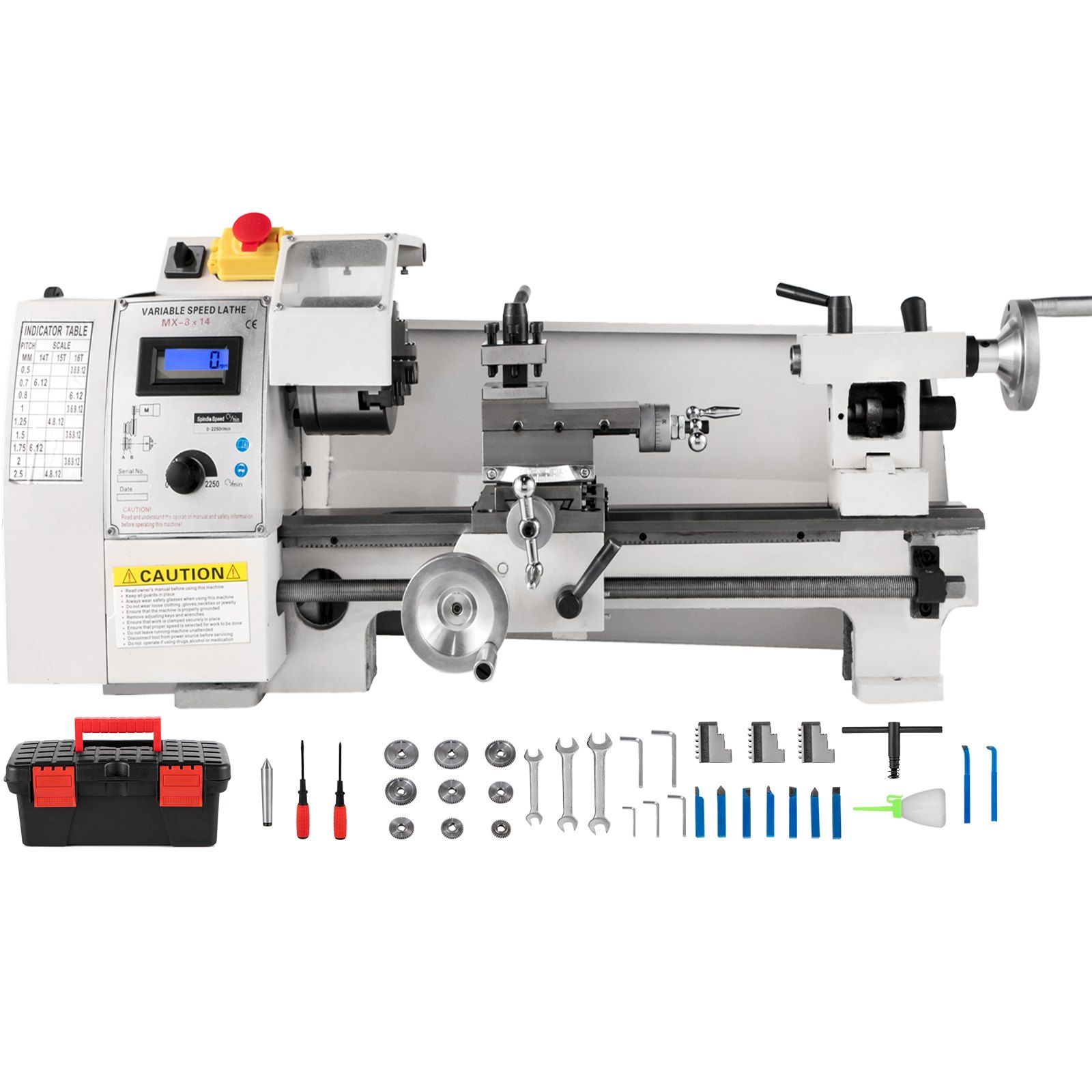

Package Content
- 1 x Mini Metal Lathe
- 9 x Metal Gears
- 3 x Jaws
- 1 x Oil Gun
- 9 x Cutters
- 5 x Allen Keys
- 1 x Accessory Kit
- 1 x Tool Kit
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
8X14' Mini Metal Lathe
Cast Iron & MT3 Spindle Taper & Simple Operation
The mini lathe is custom for you who are into making models, a Do-it-yourself (DIY) machinist, or a gun hobbyist. You can use it to create threaded parts as well as small components made with precision. The small but powerful 210*350 mm lathe of a thread range of 10-44 T.P.I will be the exact machine to fill in the vacancy in your garage.
- Sturdy & Durable Construction
- Infinitely Variable Speeds
- Works with Precision
- Faster & More Effective
Rigid Cast Iron
The milling machine is made of rugged and wear-resistant cast iron, a tough material that features a long service life.
Variable Speeds
The metal lathe comes with variable speeds of 50-2250±10% RPM. Easily change the speed by turning the switch. Meanwhile, the indicator beyond notifies you of the ongoing operations.
3-Jaw Chuck
The mini lathe bears a 3-jaw chuck and a φ21 mm spindle bore. The chuck applies a P3 bearing which is widely used where precise machining is required and reaches high rotary speeds.
4-Way Turret Post
The 4-way turret post on the lathe is easy to adjust. And it is convenient to change the cutting tools. With the post, you can do bevel cuttings.
MT2 Tailstock
The lathe machine is equipped with a foot stock which gives support to the longitudinal rotary axis of a workpiece that you are gonna process.
Wide Application
The metal lathe machine works without taking up a lot of room in your shop or garage, making bushings, spindles, prototypes, models, and more.
Package Content
- 1 x Mini Metal Lath
